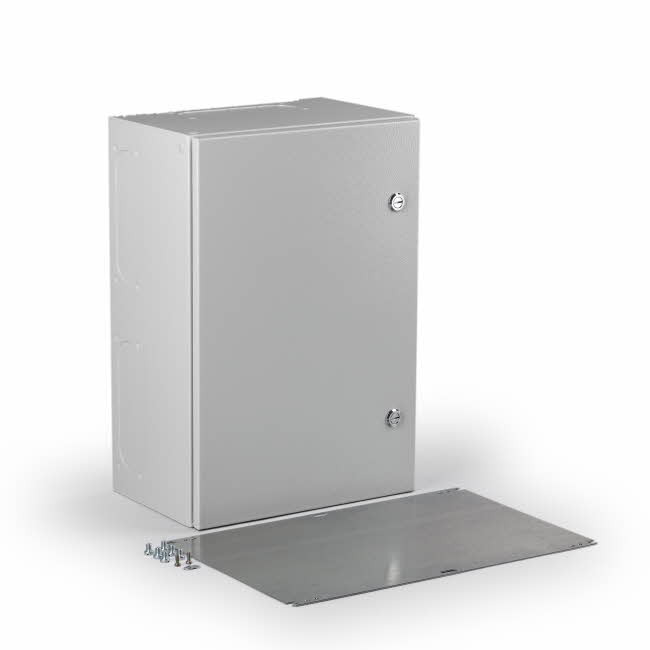

Cubo EO enclosureCubo EO enclosure 480x760x248mm, knockouts, steel, polyester painted
Compatibility:Cubo EO
Product code: EOZ487625AElectrical number: 3440644
The gasket of Casemet’s Cubo EO standard enclosure series is resistant to vibration. The enclosure is suitable for serial production and for building larger assemblies. It features flange blanks on all four sides of the base section, a fixed M8 threaded insert for the mounting plate at the bottom, an M6 bolt on one side of the base section, and two M6 bolts in the door for earthing.
| Weight | 22.1 kg |
| Width | 480 mm |
| Height | 760 mm |
| Depth | 248 mm |
| Internal depth | 228 mm |
| External base depth | 233 mm |
| External cover height | 15 mm |
| Material | Mild steel, polyester painted |
| Colour | Gray |
| Gasket seal | Polyurethane |
| Surface finish | Polyester painted |
| RAL code | 7035 |
| Wall mounting possible | No |
| Suitable for outdoor use | No |
| Pole mounting | Yes |
| Number of doors | 1 |
| Number of locks | 3 |
| Opening mechanism | Latch mechanism |
| Impact resistance | IK09 |
| EN 62208 | Yes |
| DNV-GL | Yes |
| IP rating | IP66 |
| Country of origin | FI |
| CN8 code | 85381000 |
| Finnish electrical number (STK) | 3440644 |
| Swedish electrical number (SEG) | 2530080 |
| Casemet product code | EOZ487625A |
| GTIN/EAN code | 6418677199127 |
| ETIM class | EC000261 |
| Reseller information | Available from our distributors Sonepar, Onninen, and Ahlsell. |
| Enclosure base | Yes |
| Cover / door | Yes |
| Mounting plate with fastening accessories | Yes |
| Accessories for earth connection | Yes |
| Latch with slot | Yes |
