Cubo V enclosures
Cubo V enclosures are dust-tight and withstand high-pressure water jets, steam cleaning, and immersion. They also offer high resistance to heat and vibration. They are suitable, for example, for mining machinery that is cleaned with hot high-pressure water.
Durable enclosure

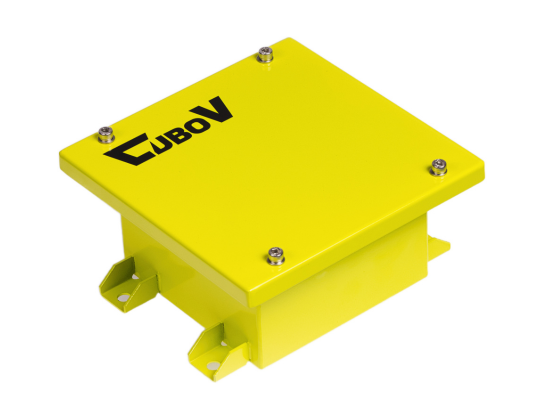

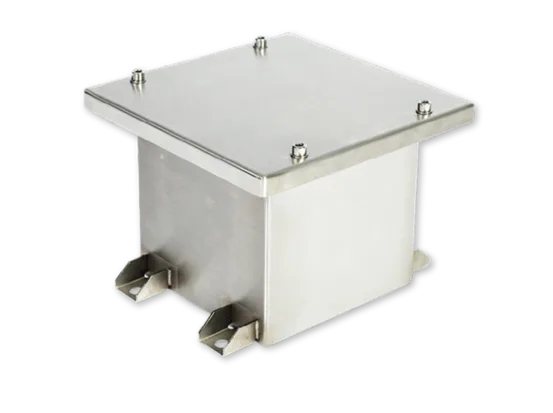

The enclosures feature a high-quality seamless silicone gasket, and the cover is secured with screws located outside the sealing surface. They are supplied with pre-welded mounting brackets, ensuring high vibration resistance and easy installation. Both the base and cover sections come with pre-installed welded studs.
See below a demonstration of the Cubo V’s sealing performance. The enclosure was submerged underwater for three months:
Technical information
| Compliancy | CE, RoHS, UKCA |
| Certificates | IEC 60529 |
| Continuous operating temperature | -55°C – +85°C |
| Protection rating | IP 66, IP 68, IP 69 |
| Material options | Polyesterimaalattu teräs, harmaa RAL 7035 Ruostumaton teräs AISI 304 Ruostumaton teräs AISI 316L |
| Sizes | 80x80x80 mm – 800x600x400 mm |
| Door | Screw-fastened cover with screws positioned outside the gasket area Reversible handing |
| Hinges | – |
| Locks | – |
| Gasket | Silicon |
| Cutouts | Plain sides |
| Mounting plate | Galvanised steel |
| Contents of the product package | Enclosure base and cover Cover screws Mounting plate with mounting accessories |
